Great Pyramid Construction Analysis

What this research found

Treating the Great Pyramid of Giza as an engineering problem, this analysis tested six proposed construction methods against the hard constraints: 2.3 million blocks, 6 million tonnes and a 20-year schedule. The 27-page paper rejects the classic single external ramp on volume grounds alone, validates wet-sand sledge transport and a counterweight-pulley mechanism, and concludes that no one technique accounts for the whole build. Five methods survive scrutiny, and the favored reconstruction combines them phase by phase as the structure rises.

• The schedule is what binds. Placing 2.3 million blocks within 20 years requires roughly 383 blocks a day — one every 90 to 120 seconds — sustaining a material flow of about 340 m³ per day.
• A single straight external ramp to the apex is ruled out arithmetically: the ramp itself would need to be 60% larger in volume than the pyramid it was built to serve.
• Two mechanisms come out as validated rather than merely plausible. Wetting sand ahead of a sledge cuts sliding friction by 55%, an effect measured experimentally and published in Physical Review Letters in 2014, and the counterweight-pulley arrangement that treats the Grand Gallery as a sliding ramp is mechanically sound for blocks up to about 10 tonnes.
• The two most widely publicized alternatives fare worst. Cast geopolymer blocks remain contested, with the supporting microstructural evidence from 2006 answered by a published rebuttal, and the hydraulic lift proposal is judged speculative for lack of archaeological corroboration.

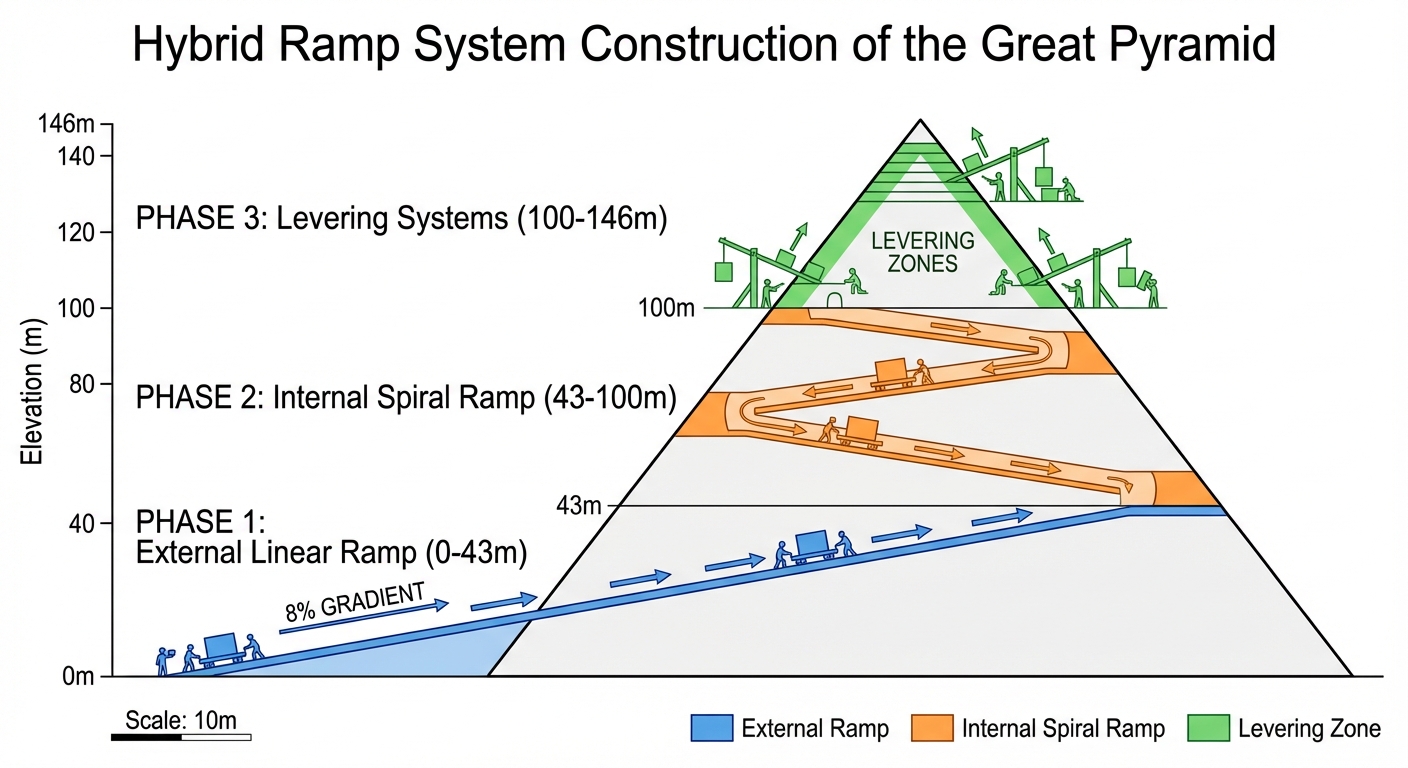

• The favored reconstruction is phase-dependent: external ramps up to 43 m, internal ramps from 43 m to 100 m, and levering for the final stretch to 146 m. That split is consistent with only 35% of the pyramid's material sitting above the 43 m mark.

How it was done

Physical parameters were tabulated first — block count, total mass, height and the 20-year timeline — then converted into required rates for block placement, material throughput and workforce size. Each of six candidate methods (external linear ramp, spiral external ramp, internal ramp, geopolymer casting, hydraulic lift and wet-sand sledge transport) was tested against those figures with explicit calculations: ramp volume against pyramid volume, lever mechanics for a 2.5-tonne block, published friction coefficients for sand, and a total lifting-energy budget of roughly 2.15 × 10¹² J derived from the pyramid's centroid height. Recent scholarship was folded in, including a 2025 counterweight-pulley study and evidence that Fourth Dynasty builders used arsenical copper tools rather than pure copper. The output is a 27-page paper with more than 35 equations, five tables, four schematic figures and 23 citations.

Data sources

• Scheuring, npj Heritage Science 13:473 (2025) — counterweight-pulley systems on sliding ramps
• Fall et al., Physical Review Letters 112(17):175502 (2014) — sliding friction on wet and dry sand
• Barsoum et al., Journal of the American Ceramic Society 89(12):3788 (2006) — microstructural evidence for reconstituted limestone blocks
• Lehner, The Complete Pyramids (1997)
• Houdin, The Secret of the Great Pyramid (2008) — internal ramp hypothesis
• 23 cited works in total, spanning Petrie (1883) to 2025
